Electronic Dice

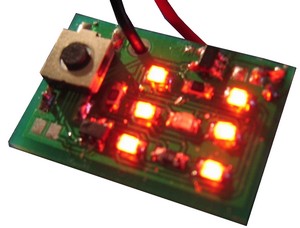

complet circuit blinking leds
Electronic Dice

Hardware

Circuit | PCB

Software

Source code

Project Specifications

  • PIC:PIC16F200
  • LED Type:LED SMD x 7
  • Dice Patterns:6

Circuit random 1 to 6 output like a dice.
Can be used PIC10F222



Roll animation dice animation


LP2895 is a 5v regulator, can be replace by other regulator.
all circuit is maded with smd devices, however, can be used another type.


Circuit Diagram, PCB

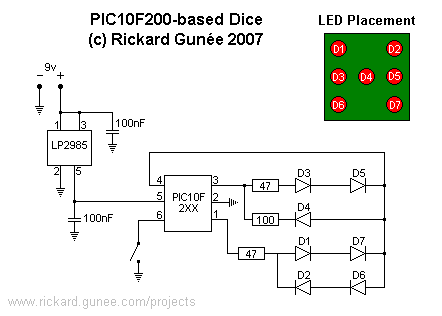

Electronic circuit diagram - Dice

dice electronic schematic

Electronic Dice PCB

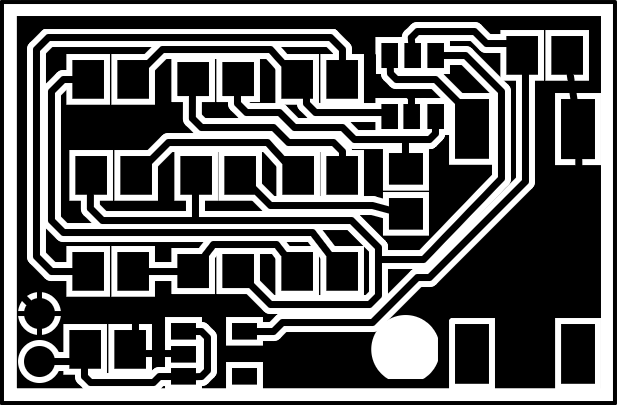

Pattern drawing (component side)

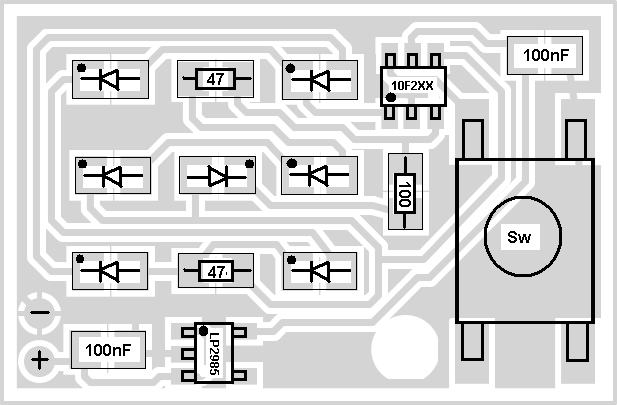

PCB components layout

PCB layout

Source code files - Electronic Dice

Dice source (HEX-ASM)


Original Author: (C) Rickard Gunee - link
